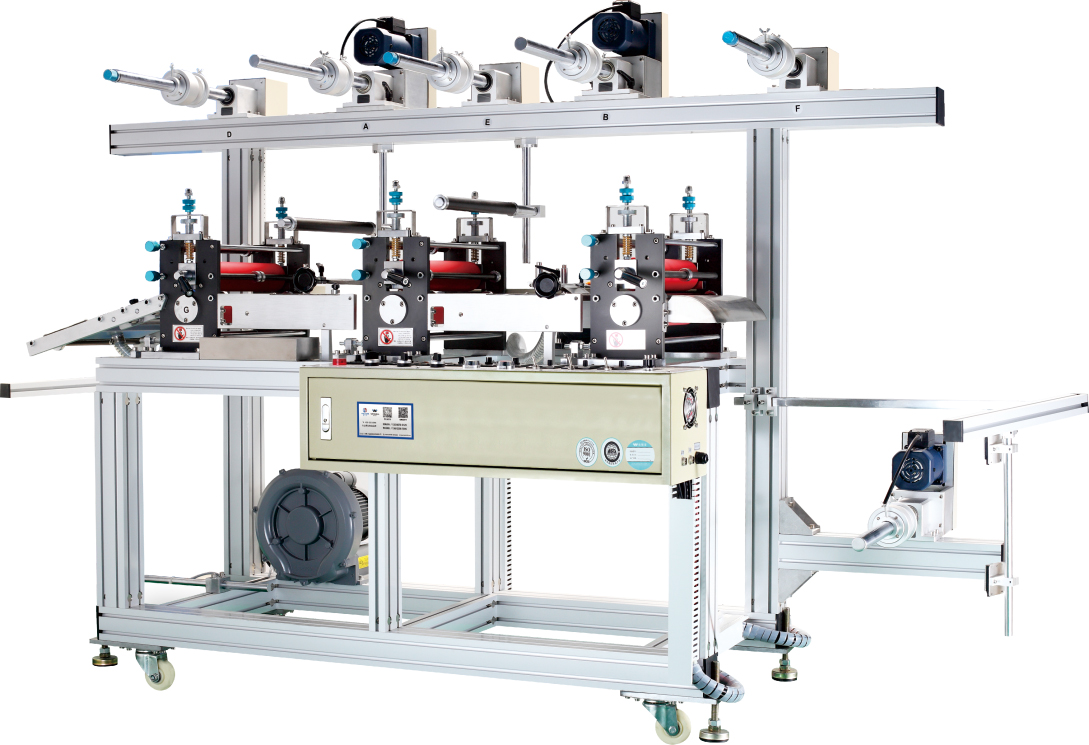

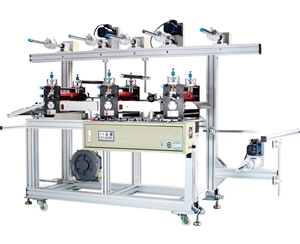

HT300-3 三座高速精密贴合机厂家

HT300-3 三座高速精密贴合机厂家

产品详情

适用范围

SCOPE OF APPLICATION

适合各种卷材、片装材料的贴合、冲型。可贴合、排废、精度高、噪音小,具有防刮伤功能。在电子行业和印刷行业得到广泛应用。
Suitable for lamination and punching of various coil and sheet materials. It can be laminated, discharged waste, high precision, low noise, and has anti-scratch function. It is widely used in the electronics industry and printing industry.

产品特点

PRODUCT FEATURES

上料装置
1. 定位材料,提供张力及保证订料直线。
2.收卷、放卷方便,两端收放轴可进行旋转装卸材料。

排废装置
排废平臺排废刀、多组排废辊组合一起, 功能灵活强大,调整方便基本实现大部分产品的自动排废工作。

复合辊
多组复合辊可进行多条、多层材料的复合、排废工作,复合辊压力调整方便,上下辊间距可调,通过端面,微调螺栓轻松实现复合定位圈的轴向移动。

操作面板
电器集中控制,调整方便。


Feeding Unit
1.Locate the material to provide corresponding tensile force, guaranteeing that the material is in a straight line.
2.It's convenient to roll up and roll out, and rlngingololing shaft is rotatory to load and unload materials.

Waste Discharge Unit
Waste discharge knife and various waste discharge rllers are wel combined to enable texible and powerful functions, andit' s convenient to conduct automatic waste discharge.

Composite Roller
Various composite rollers are avallable to finish corresponding recombinationand waste discharge work for muiti-plece and muti-layer materials,It' S easy to adjust the pressure of any composite roller, and their spacing isS also adjustable.

Operation Panel
It's easy to conduct a centalized control.



HT300-3 三座高速精密贴合机厂家技术参数

TECHNOLOGY PARAMETERS


型号 MODEL HT300-3
覆膜宽度 Cover film wdth 300mm
覆膜速度 Cover film speed 0-30m/min(变频无极调速)
收卷直径 Winding diameter 400mm
定位精度 Positioning accuracy ±0.1mm
机械重量 Machine Weight 450KG
机械外型尺寸 Mechanical dimensions 1850*1100*2050mm
电源 Power Supply 单相220V/1.5KW

四放四收,均带磁粉张力控制
