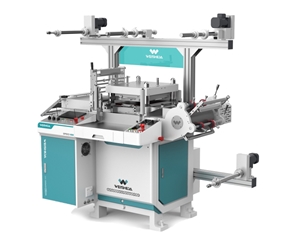

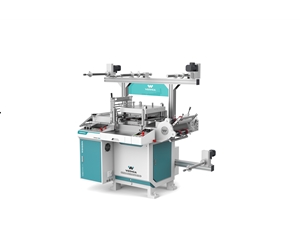

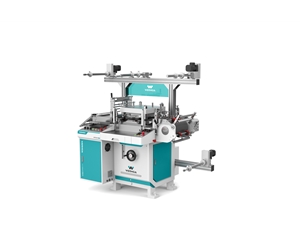

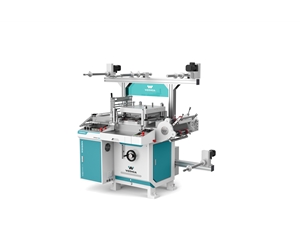

自动模切机 HB300/HB350

自动模切机 HB300/HB350

产品详情

自动模切机 HB300/HB350 适用范围

SCOPE OF APPLICATION

适合于多层结构产品的省料模切,口子胶产品、TP泡棉、黑白胶、增光扩散片等四面背胶产品的异步模切、无缝对接工艺。
It is suitable for material-saving die-cutting of multi-layer structure products, asynchronous die-cutting and seamless butt-joining process of four-sided adhesive products such as mouth glue products, TP foam, black and white glue, and light-enhancing diffuser.

自动模切机 HB300/HB350产品特点

PRODUCT FEATURES

1、胶贴制品:对各种电子:电器特殊胶垫、硅胶贴、魔术贴、导电胶、强力双面胶、3M、索尼特殊胶贴、背光屏等电子业、IT业薄膜开关、汽车制造业中所使用胶贴产品。

2、防尘材料:化妆棉、相机棉、高密海绵、过滤棉、防尘网、无纺布。

3、防震产品:回力胶垫、橡胶、透明脚垫、PORON垫、3M、阻燃EVA、高发泡。

4、EMI屏蔽材料:铜箔,铝箔,导电布,吸波材。

5、耐热隔热材料:矽胶片、透明云母片、纤维布、隔热棉(布)。


1.Adhesive products: For all kinds of electronics: special electrical appliances, silicone stickers, Velcro, conductive adhesive, strong double-sided tape, 3M, Sony special adhesive stickers, backlight screens and other electronics industry, IT industry membrane switches, automobile manufacturing Adhesive products used.

2.Dustproof materials: cotton, camera cotton, high-density sponge, filter cotton, dust-proof net, non-woven fabric.

3.Anti-vibration products: resilience rubber pads, rubber, transparent foot pads, PORON pads, 3M, flame retardant EVA, high foaming.

4.EMI shielding materials: copper foil, aluminum foil, conductive cloth, absorbing materials.

5.Heat-resistant insulation materials: silicon film, transparent mica sheet, fiber cloth, insulation cotton (cloth).



自动模切机 HB300/HB350技术参数

TECHNOLOGY PARAMETERS


型号 MODEL HB300 HB350
进料宽度 Feeding Width 310mm 360mm
模切面积 Die Cutting Area 300*250mm 350*290mm
运行速度 Running Speed 2000-12000pcs/h(建议速度) 2000-12000pcs/h(建议速度)
电源 Power Supply 三相3800V/6KW 三相3800V/6.5KW
机械重量 Machine Weight 3450Kg 3800Kg
下模板外型尺寸 Lower Plate' S External Dimension 420*270*18mm 460.5*300*20mm
上模板外型尺寸 Upper Plate' S External Dimension 350*260*16mm 350*260*31.6mm 400*300*16mm 400*300*31.6mm
模切行程 Die Cutting Stroke 20mm 20mm
行程调节量 Stroke Adjustment 7mm 7mm
模切压力精度 Die Cutting Pressure Accuracy ±0.01mm ±0.01mm
重复模切定位精度 Repeated Die Cuting Location Accuracy ±0.2mm ±0.2mm
机械外型尺寸 Mechanical dimensions 3000*1250*1900mm 3000*1300*1800mm
模切压力 Die Cutting Pressure 5T 8T
适用刀模类型 Compatible Cutting Die Categories 木刀模、胶板模、腐蚀模、雕刻模、钢模(QDC模)
润滑方式 Method of Lubrication 自动循环供油
