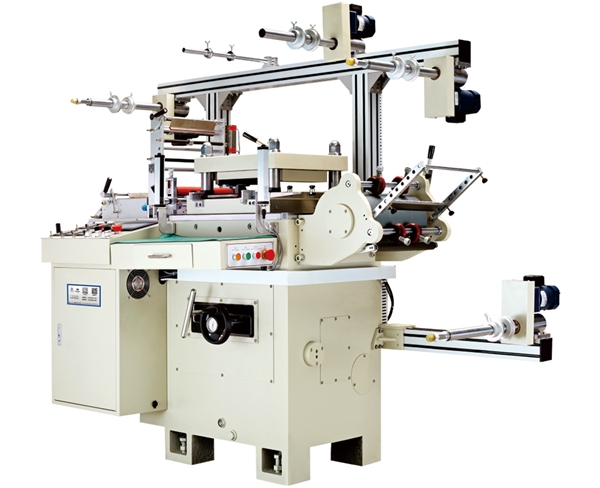

高速模切机 HAS300/HAS350

高速模切机 HAS300/HAS350

产品详情

高速模切机 HAS300/HAS350适用范围

SCOPE OF APPLICATION

适合各种卷材、片装材料的贴合、冲型。使用电脑伺服数控系统拉料、送料,可作全断、半断冲型、排废、精度高、噪音小、速度快,具有防刮伤功能。可进行二次模切冲型,在电子行业和印刷行业得到广泛应用。可根据客户要订制二次定位模切功能。
Suitable for lamination and punching of various coil and sheet materials. Using the computer servo numerical control system to pull and feed materials, it can be used for full-break, half-break, waste discharge, high precision, low noise, high speed, and anti-scratch function. It can be used for secondary die-cutting and punching, and is widely used in the electronics industry and printing industry. The secondary positioning die-cutting function can be customized according to customer needs.

高速模切机 HAS300/HAS350产品特点

PRODUCT FEATURES

1、适用各种卷装,片装材料的贴合、冲型。

2、可根据客户要求订制二次定位模切功能。

3、可进行二次模切冲型,在电子行业和印刷行业得到广泛应用。

4、使用电脑伺服数控系统拉料、送料,可作全断、半断冲型、排废、精度高、噪音小、速度快,具有防刮伤功能。


1.It is suitable for lamination and punching of various roll and sheet materials.

2.The secondary positioning die-cutting function can be customized according to customer requirements.

3.It can be used for secondary die-cutting and punching, and is widely used in the electronics industry and printing industry.

4.Using the computer servo numerical control system to pull and feed materials, it can be used for full-break, half-break, waste discharge, high precision, low noise, high speed, and anti-scratch function.



高速模切机 HAS300/HAS350技术参数

TECHNOLOGY PARAMETERS


型号 MODEL HAS300 HAS350
进料宽度 Feeding Width 310mm 360mm
模切面积 Die Cutting Area 300*250mm 350*290mm
模切速度 Die Cutting Speed 2000-15000pcs/h 2000-15000pcs/h
电源 Power Supply 单相220V/4kw 单相220V/4.4kw
机械外形尺寸 Overall Dimensions 2000* 1200*1900mm 2000*1250*1900mm
机械重量 Machine Weight 1850Kg 2050Kg
下模板外型尺寸 Lower Plate' S External Dimension 420*270*18mm 460.5*300*20mm
上模板外型尺寸 Upper Plate' S External Dimension 350*260*16mm 350*260*31.6mm 400*300*16mm 400*300*31.6mm
模切行程 Die Cutting Stroke 20mm 20mm
行程调节量 Stroke Adjustment 7mm 7mm
模切压力精度 Die Cutting Pressure Accuracy ±0.01mm ±0.01mm
拉料精度 Material-pulling Accuracy ±0.1mm ±0.1mm
重复模切定位精度 Repeated Die Cutting Location Accuracy ±0.15mm ±0.15mm
机油用量 Engine Oil Usage 23L 27L
模切压力 Die Cutting Pressure 5T 8T
适用刀模类型 Compatible Cutting Die Categories 木刀模、胶板模、腐蚀模、雕刻模、钢模(QDC模)
润滑方式 Method of Lubrication 自动循环供油
