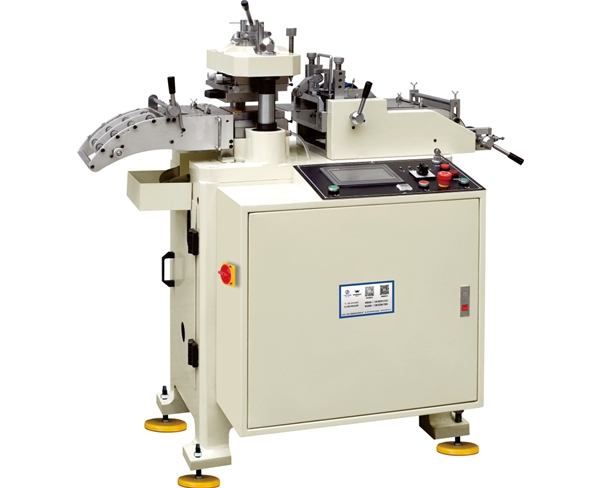

HD200 智能高速模切机

产品详情

适用范围

SCOPE OF APPLICATION

适合各种卷材、片装材料的贴合、冲型。使用电脑伺服数控系统拉料、送料，可作全断、半断冲型、排废、精度高、噪音小、速度快，具有防刮伤功能。可进行二次模切冲型，在电子行业和印刷行业得到广泛应用。可根据客户要订制二次定位模切功能。

Suitable for lamination and punching of various coil and sheet materials. Using the computer servo numerical control system to pull and feed materials, it can be used for full-break, half-break, waste discharge, high precision, low noise, high speed, and anti-scratch function. It can be used for secondary die-cutting and punching, and is widely used in the electronics industry and printing industry. The secondary positioning die-cutting function can be customized according to customer needs.

HD200 智能高速模切机产品特点

PRODUCT FEATURES

1、压力稳定性高，在加工产品时不会因中间暂停时间过久而影响压力变化。

2、双伺服系统控制（数控送料精度，数控主机调速）。

3、步进电机加编码器控制（数控加、减压控制）。

4、主机动力采用高转速大惯量伺服电机，噪音小，力矩大。

5、生产效率高，比普通机器快50%，最高速度可达15000PCS/H。

6、全自动数字调压，方便快捷，加减压精度可控制到0.001MM，调节精度高。

1.The high pressure stability is not afcted or changed by the long pause time in the processing.

2.Dual servo system control (CNC feeding accuracy and CNC host speed).

3.Stepper motor and encoder control (CNC pressurization and decompression control).

4.High-speed and large inertia servo motor are adopted for main engine power for low roise and large torque.

5.Production fficiency is high. It is 50% faster than ordinary machines, and the highest speed reaches 150C0PCSIH.

6.The automatic dgital vlage regulation is convenient and fast. The adjustmet acuray is high, and the pressurization and decompression can be controlled to the accuracy of 0.001MM.

技术参数

TECHNOLOGY PARAMETERS

型号 MODEL	HD200
进料宽度 Feeding Width	220mm
模切面积 Die Cutting Area	200*180mm
最大运行速度 Max. Running Speed	20000pcs/h
额定运行速度 Rated Running Speed	12000pcs/h
机械重量 Machine Weight	1.1T
下模板外型尺寸 Lower Plate' S External Dimension	22022020mm
上模板外型尺寸 Upper Plate' S External Dimension	22022014mm 22022030mm
模切行程 Die Cutting Stroke	30mm
行程调节量 Stroke Adjustment	24mm
模切压力精度 Die Cutting Pressure Accuracy	±0.01mm
重复模切定位精度 Repeated Die Cuting Location Accuracy	±0.15mm
拉科精度 Materal-puling Accuracy	±0.08mm
套位精度 Location Accuracy	±0.05mm
机械外型尺寸 Mechanical dimensions	126010001300mm
模切压力 Die Cutting Pressure	6-7T
电源 Power Supply	3KW
适用刀模类型 Compatible Cutting Die Categories	QDC，雕刻刀，腐蚀刀模，23.8mm，8mm
润滑方式 Method of Lubrication	自动循环供油
