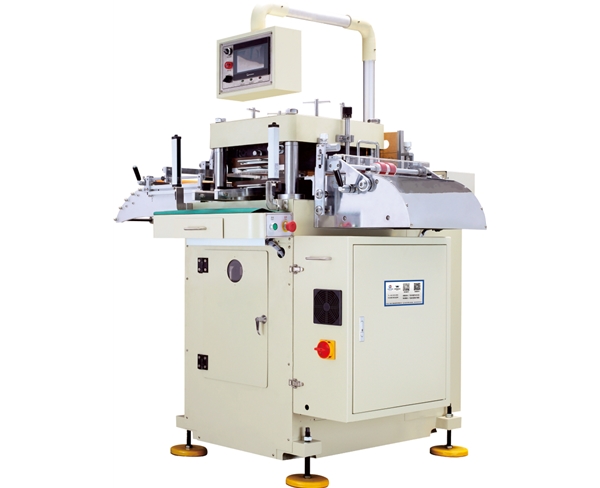

全自动模切机 HD300/HD450 智能高速

全自动模切机 HD300/HD450 智能高速

产品详情

全自动模切机 HD300/HD450适用范围

SCOPE OF APPLICATION

适合各种卷材、片装材料的贴合、冲型。使用电脑伺服数控系统拉料、送料,可作全断、半断冲型、排废、精度高、噪音小、速度快,具有防刮伤功能。可进行二次模切冲型,在电子行业和印刷行业得到广泛应用。可根据客户要订制二次定位模切功能。
Suitable for lamination and punching of various coil and sheet materials. Using the computer servo numerical control system to pull and feed materials, it can be used for full-break, half-break, waste discharge, high precision, low noise, high speed, and anti-scratch function. It can be used for secondary die-cutting and punching, and is widely used in the electronics industry and printing industry. The secondary positioning die-cutting function can be customized according to customer needs.

全自动模切机 HD300/HD450产品特点

PRODUCT FEATURES

1、适用各种卷装,片装材料的贴合、冲型。

2、可根据客户要求订制二次定位模切功能。

3、可进行二次模切冲型,在电子行业和印刷行业得到广泛应用。

4、使用电脑伺服数控系统拉料、送料,可作全断、半断冲型、排废、精度高、噪音小、速度快,具有防刮伤功能。

5、全自动电脑加压功能。


1.It is suitable for lamination and punching of various roll and sheet materials.

2.The secondary positioning die-cutting function can be customized according to customer requirements.

3.It can be used for secondary die-cutting and punching, and is widely used in the electronics industry and printing industry.

4.Using the computer servo numerical control system to pull and feed materials, it can be used for full-break, half-break, waste discharge, high precision, low noise, high speed, and anti-scratch function.

5.Full automatic computer pressing function.



全自动模切机 HD300/HD450技术参数

TECHNOLOGY PARAMETERS


型号 MODEL HD300 HD450
进料宽度 Feeding Width 300*300mm 450*400mm
模切面积 Die Cutting Area 280*300mm 450*400mm
最大运行速度 Max. Running Speed 18000pcs/h 15000pcs/h
额定运行速度 Rated Running Speed 12000pcs/h 12000pcs/h
机械外形尺寸 Overall Dimensions 1500*1700*1550mm 1500*1700*1550mm
机械重量 Machine Weight 1.5T 2.3T
下模板外型尺寸 Lower Plate' S External Dimension 300*300*20mm 440*320*50mm
上模板外型尺寸 Upper Plate' S External Dimension 300*300*14mm 300*300*30mm 440*320*22mm 440*320*40mm
模切行程 Die Cutting Stroke 30mm 30mm
行程调节量 Stroke Adjustment 10mm 10mm
电源 Power Supply 4KW 5.5KW
套位精度 Location Accuracy ±0.05mm ±0.05mm
模切压力精度 Die Cutting Pressure Accuracy ±0.01mm ±0.01mm
拉料精度 Material-pulling Accuracy ±0.08mm ±0.08mm
重复模切定位精度 Repeated Die Cutting Location Accuracy ±0.15mm ±0.15mm
模切压力 Die Cutting Pressure 6-7T 6-7T
适用刀模类型 Compatible Cutting Die Categories QDC,雕刻刀,腐蚀刀模,23.8mm,8mm
润滑方式 Method of Lubrication 自动循环供油
