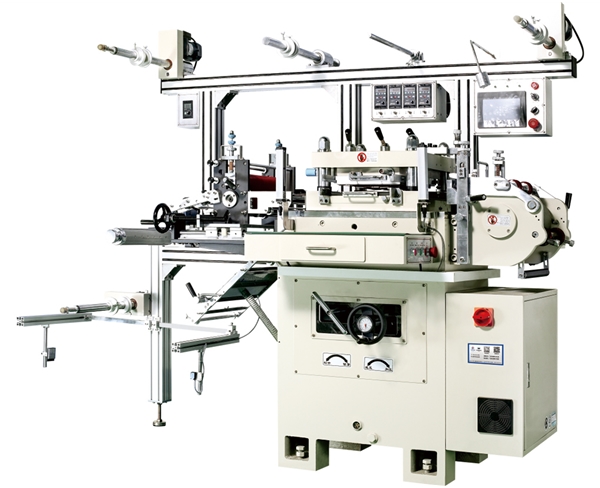

不干胶模切机 HDK300 数控高速

不干胶模切机 HDK300 数控高速

产品详情

不干胶模切机 HDK300适用范围

SCOPE OF APPLICATION

适合于多层结构产品的省料模切,口子胶产品、TP泡棉、黑白胶、增光扩散片等四面背胶产品的异步模切、无缝对接工艺。
It is suitable for the material- saving die cutting of mut-layer products, and asynchronous die cutting and seamless dock ingprocess of four- sided adhesive products such as gum products.TP foam, black and white tape and brightness intensify dffuser.

不干胶模切机 HDK300 数控高速产品特点

PRODUCT FEATURES

1、压力稳定性高,在加工产品时不会因中间暂停时间过久而影响压力变化。

2、双伺服系统控制(数控送料精度,数控主机调速)。

3、步进电机加编码器控制(数控加、减压控制)。

4、主机动力采用高转速大惯量伺服电机,噪音小,力矩大。

5、生产效率高,比普通机器快50%,最高速度可达15000PCS/H。

6、全自动数字调压,方便快捷,加减压精度可控制到0.001MM,调节精度高。


1.The high pressure stability is not afected or changed by the long pause time in the processing.

2.Dual servo system control (CNC feeding accuracy and CNC host speed).

3.Stepper motor and encoder control (CNC pressurization and decompression control).

4.High-speed and large inertia servo motor are adopted for main engine power for low noise and large torque.

5.Production efficiency is high. It is 50% faster than ordinary machines, and the highest speed reaches 15000PCS/H.

6.The automatic digital voltage regulation is convenient and fast. The adjustment accuracy is high, and the pressurization and decompressioncan be controlled to the accuracy of 0.001MM.



不干胶模切机 HDK300技术参数

TECHNOLOGY PARAMETERS


型号 MODEL HDK300
进料宽度 Feeding Width 310mm
额定运行速度 Rated Running Speed 2000-15000PCS/H
模切行程 Die Cutting Stroke 20mm
行程调节量 Stroke Adjustment 7mm
拉料精度 Material Pulling Accuracy ±0.1mm
重复模切定位精度 Repeated Die Cutting Location Accuracy ±0.15mm
机械外形尺寸 Overall Dimensions 2000*1200*1900mm
模切压力 Die Cutting Pressure 5T
模切面积 Die Cutting Area 300*250mm
电源 Power Supply 单相220V/4kw
