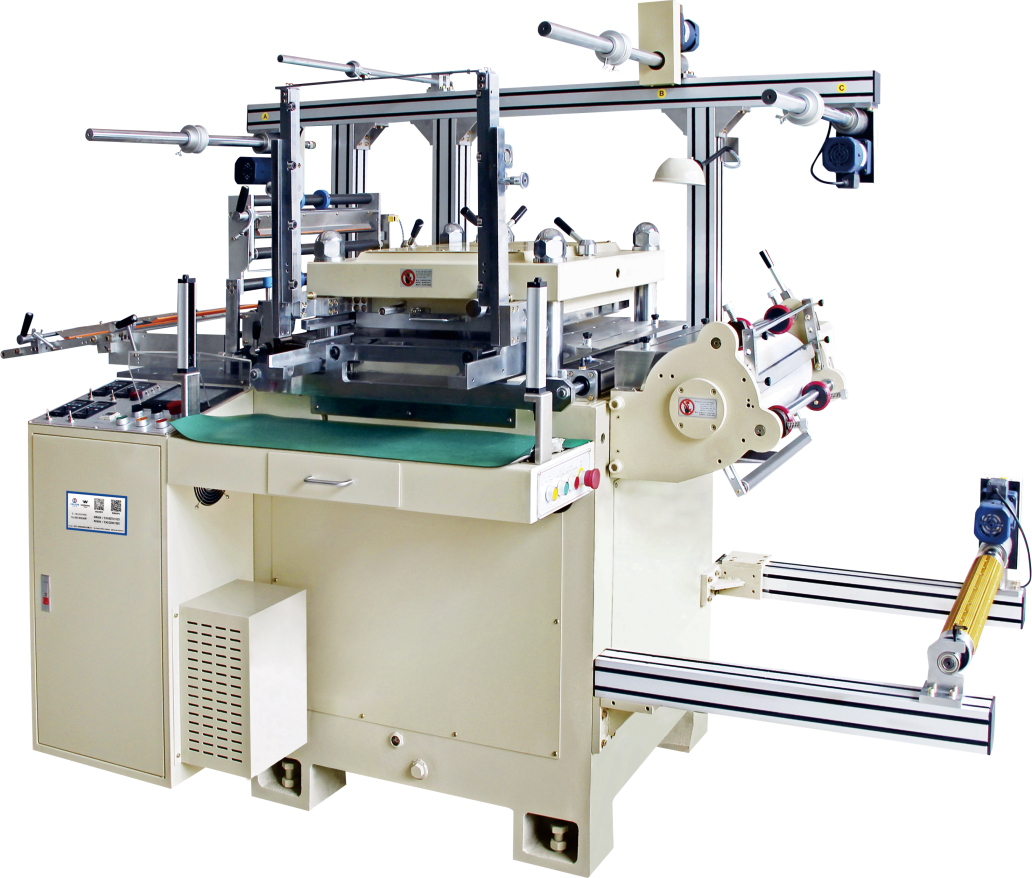

商标模切机 HA450/HA600

产品详情

商标模切机 HA450/HA600适用范围

SCOPE OF APPLICATION

适合各种卷材、片装材料的贴合、冲型。使用电脑伺服数控系统拉料，送料，可作全断、半断冲型、排废、精度高、噪音小、速度快，具有防刮伤功能。可进行二次模切冲型，在电子行业和印刷行业得到广泛应用。可根据客户要求订制二次定位模切功能。

Suitable for lamination and punching of various coil and sheet materials. Use the computer servo numerical control system to pull and feed materials, which can be used for full-break, half-break, waste discharge, high precision, low noise, high speed, and anti-scratch function. It can be used for secondary die-cutting and punching, and is widely used in the electronics industry and printing industry. The secondary positioning die-cutting function can be customized according to customer requirements.

商标模切机 HA450/HA600产品特点

PRODUCT FEATURES

1、适用各种卷装，片装材料的贴合、冲型。

2、可根据客户要求订制二次定位模切功能。

3、可进行二次模切冲型，在电子行业和印刷行业得到广泛应用。

4、使用电脑伺服数控系统拉料、送料，可作全断、半断冲型、排废、精度高、噪音小、速度快，具有防刮伤功能。

1.It can be apiled for the laminating and punching of various clled materials and shee materials.

2.Secondary locaton die cuting functon is optional accordng to the Clent's requrement

3.Secondary die cutting punchingis available and计has widely applied to electronic and printing industres.

4.By means of the computer servo CNC system,itis able to complete ull-break and half-break punching and dischaarge wastes,featuring high precision, low noise, high speed, and anti-scratch function.

商标模切机 HA450/HA600技术参数

TECHNOLOGY PARAMETERS

型号 MODEL	HA450	HA600
进料宽度 Feeding Width	460mm	640mm
模切面积 Die Cutting Area	450*420mm	620*480mm
模切速度 Die Cutting Speed	3000-9000pcs/h	2000-6000pcs/h
电源 Power Supply	三相380V/6KW	三相380V/7.4KW
机械重量 Machine Weight	2200Kg	3500Kg
下模板外型尺寸 Lower Plate' S External Dimension	50044020mm	76849020mm
上模板外型尺寸 Upper Plate' S External Dimension	49044020mm 49044036mm	64051023.6mm
模切行程 Die Cutting Stroke	16mm	20mm
行程调节量 Stroke Adjustment	7mm	7mm
模切压力精度 Die Cutting Pressure Accuracy	±0.015mm	±0.02mm
重复模切定位精度 Repeated Die Cuting Location Accuracy	±0.15mm	±0.15mm
拉科精度 Materal-puling Accuracy	±0.1mm	±0.1mm
机油用量 Engine OH Usage	38L	45L
机械外型尺寸 Mechanical dimensions	220014001900mm	260020002100mm
模切压力 Die Cutting Pressure	10T	15T
适用刀模类型 Compatible Cutting Die Categories	木刀模、胶板模、腐蚀模、雕刻模、钢模(QDC模)
润滑方式 Method of Lubrication	自动循环供油
