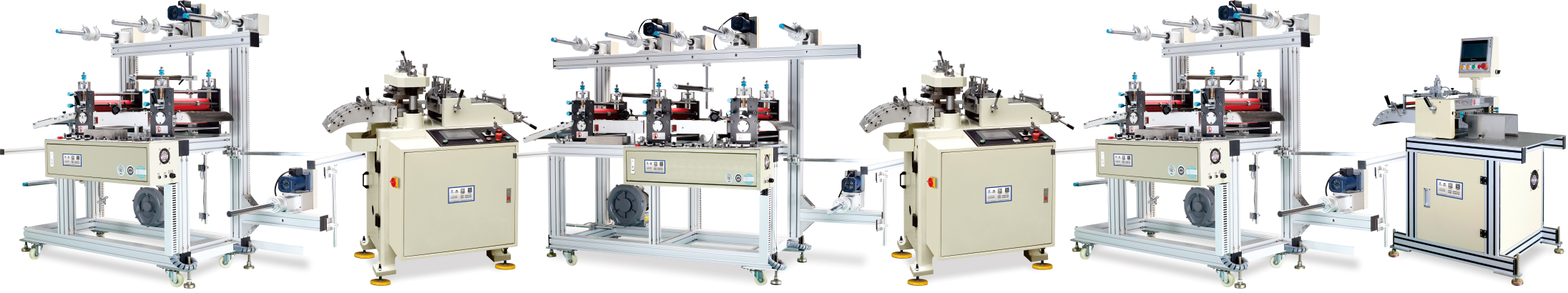

数控模切组合线

产品详情

数控模切组合线性能特性

Characteristic

1、全方位自动控制：组合机在生产过程中，能自动识别各自的工作状态，全自动控制整个生产流程。
2、可独立性：组合机拆分使用时，各自亦可作独立机使用，使用户更具经济效益。
3、高精度，超稳定性：模切工作时，机械定位纠错装置可以弥补伺服系统之累计误差，确保模切长时间运作精准，稳定。
4、可多次贴合与排废：带自动张力控制马达的设计，能使产品在多次贴合，多次排废过程中顺利的一次性完成。

1. Complete automatic control system: The combined machine can auomatically detect the working condtion of each nidua machine during working process, it can flly automatic control the entire working procedure.
2 independency: The combined machine can be split into ndividual machine, each machine can work independenty.
3. High precision and stability: The mechanical orientation mechanism can correct the accumulated error of servo system and ensure the precision and stability of long time working.
4. Multiple pasting and waste drains: Equipped with the auto tension control motor can make the product to be finished simultaneously during the processes of multiple pasting and waste drains.

技术要求

TECHNICAL REQUIREMENTS

1、所有工序都为蚀刻模。
2、蚀刻模刀锋需锋利、无披锋、毛刺，版面平整、不能厚薄不均匀。
3、蚀刻模具未注尺寸公差为±0.03mm，刀板尺寸除外。
4、蚀刻模高1.5mm，板厚0.5mm，总高度2.0mm，配6mm铝板，铝板需光滑平整。

1. All processes are etching molds.
2. The blade of the etching mold must be sharp, free of burrs, and flat, without uneven thickness.
3. The uninjected dimension tolerance of the etching mold is ±0.03mm, except for the blade size.
4. The height of the etching mold is 1.5mm, the thickness of the plate is 0.5mm, and the total height is 2.0mm. It is equipped with 6mm aluminum plate, which needs to be smooth and flat.
